Do not treat every cross-corridor line as the same feature

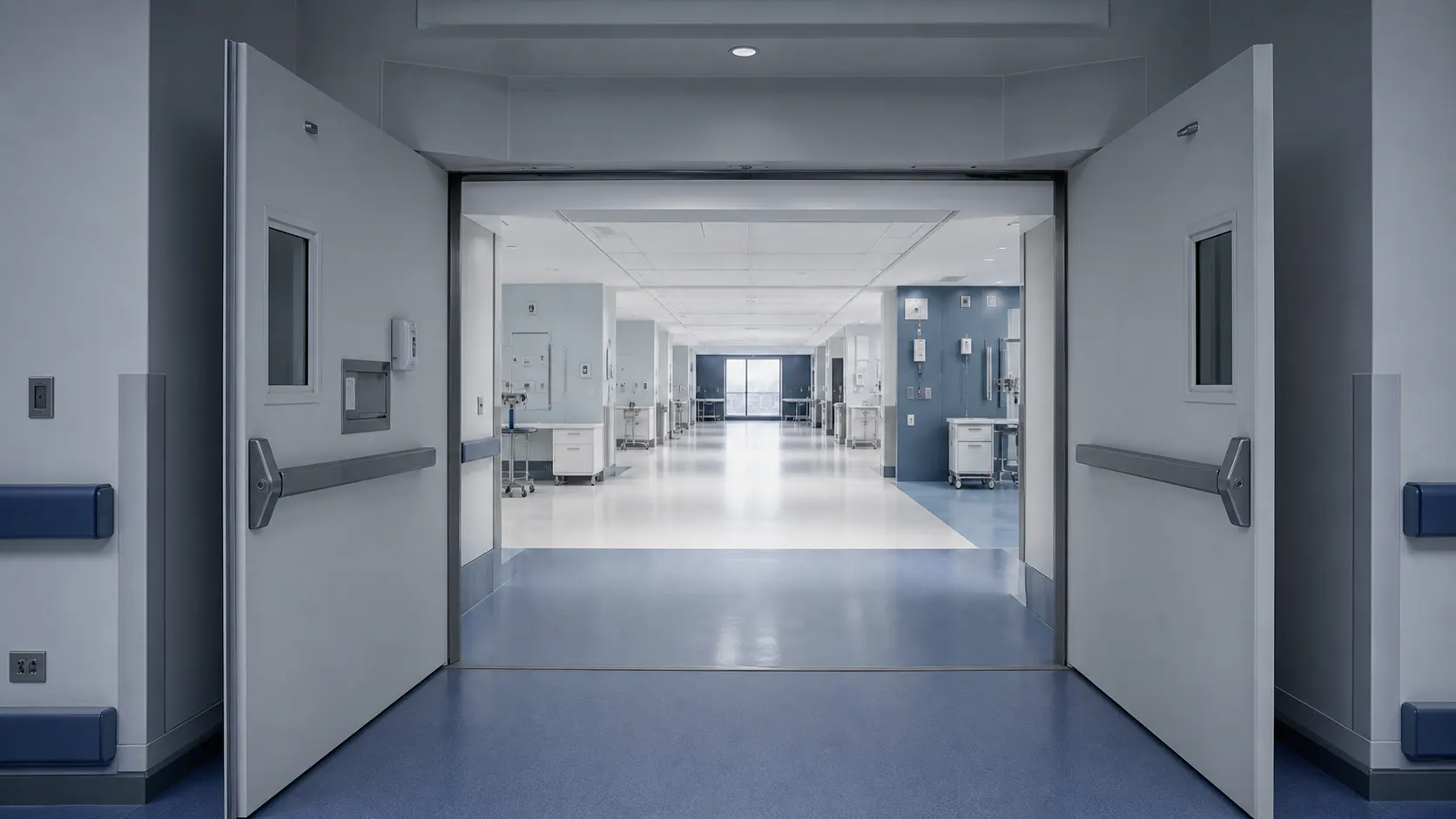

A smoke barrier and a horizontal exit can appear similar on a floor plan because each may cross a corridor and use paired doors. Their code functions are different. A smoke barrier creates smoke compartments that support relocation and defend-in-place strategy. A horizontal exit is a means-of-egress component that provides protected passage to an area on approximately the same level. The facility must identify which function was approved before selecting construction, door, capacity, or inspection criteria.136
Understand the structural role of a horizontal exit
CMS-2786R K226 directs horizontal exits to the general horizontal-exit provisions and the applicable new or existing health care sections. The separating construction is evaluated as the required fire-resistance-rated arrangement with protected openings and continuity. The doorway is not merely a smoke-control convenience; it forms part of an exit. Penetrations, ducts, doors, frames, glazing, and connections to exterior walls or other assemblies must be coordinated with that function.13
Understand the role of a smoke barrier
Smoke barriers subdivide a healthcare story into smoke compartments to restrict smoke movement and support staged relocation. Their rating, continuity, opening, damper, and door requirements follow the applicable smoke-barrier provisions rather than the horizontal-exit pathway. A smoke-barrier door can be permitted without latching under specified healthcare conditions, which is one reason a team should not apply horizontal-exit door assumptions to every pair of cross-corridor doors.135
Verify exit capacity and alternative egress
A horizontal exit can contribute to required egress, but it does not eliminate the need to evaluate the number and capacity of other exits under the adopted provisions. Calculate occupant load, available width, receiving-area capacity, remoteness, and the routes that do not depend on the horizontal exit. Door replacement or a change in the adjacent compartment can affect both opening protection and available egress capacity even when the barrier line remains in the same location.134
Confirm the receiving area and relocation strategy
The area beyond a horizontal exit must be suitable for the occupants expected to move there and remain available under the design assumptions. Coordinate clear area, staff movement, patient-care needs, door operation, and routes onward to other exits. For smoke compartments, confirm the facility’s relocation plan aligns with actual compartment boundaries. Operational planning cannot substitute for required construction, but required construction also cannot protect patients if staff do not know where the boundary leads.1457
Show the distinction clearly on life safety drawings
Use different line types, labels, ratings, and door symbols for horizontal exits and smoke barriers. Identify smoke-compartment areas, horizontal-exit discharge direction, receiving areas, and related exits where appropriate. Preserve the governing edition and drawing revision. If a barrier serves more than one function, state each function explicitly and apply the requirements cumulatively. Ambiguous graphics invite inconsistent maintenance, damper inventories, penetration repairs, door inspections, and survey explanations.637
Survey the complete boundary and operating story
Review drawings before the field walk, then trace representative barriers from end to end, including above ceilings and through intersecting construction. Test door operation, examine openings and penetrations, confirm labels and hardware, and compare the observed use of adjacent spaces with receiving-area assumptions. Ask staff to explain relocation direction and boundary purpose. Record whether each finding affects fire resistance, smoke resistance, egress capacity, operations, or documentation so corrective work addresses the actual function.
Use different corrective criteria for each identified function and verify the completed work against the approved assembly rather than a generic barrier checklist.3457
